An aircraft maintenance hangar is a highly specialized, engineered facility designed for the active inspection, repair, and overhaul of aviation fleets, featuring distinct structural layouts and clear-span designs to guarantee airworthiness. Operating out of an inadequately designed workspace or a basic storage shed creates massive operational bottlenecks, leading to escalating aircraft downtime costs and compromised crew safety. Thankfully, constructing a pre-engineered steel structure designed specifically for complex aviation workflows resolves these structural limitations. Understanding how a professional hanggar adalah optimized for your fleet can transform your operational efficiency and protect your valuable assets.

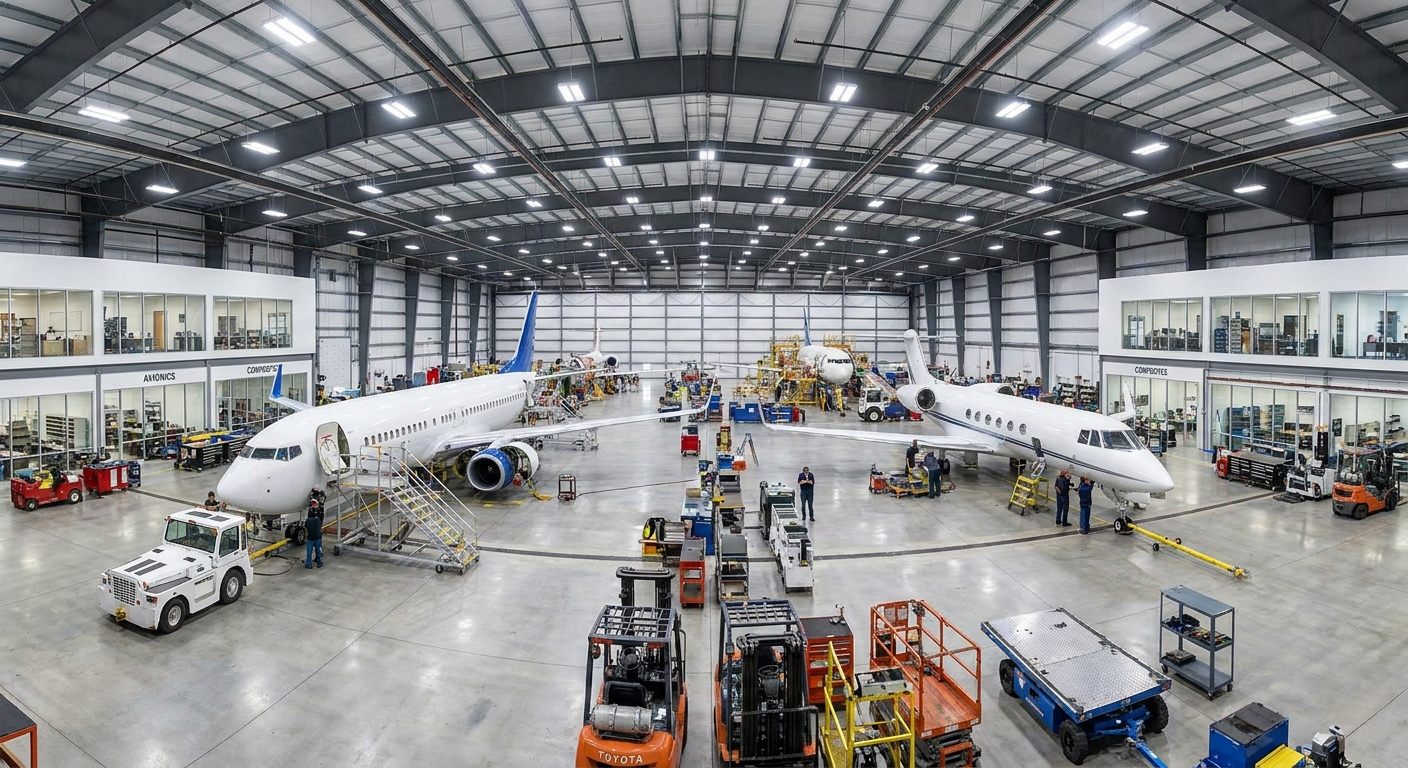

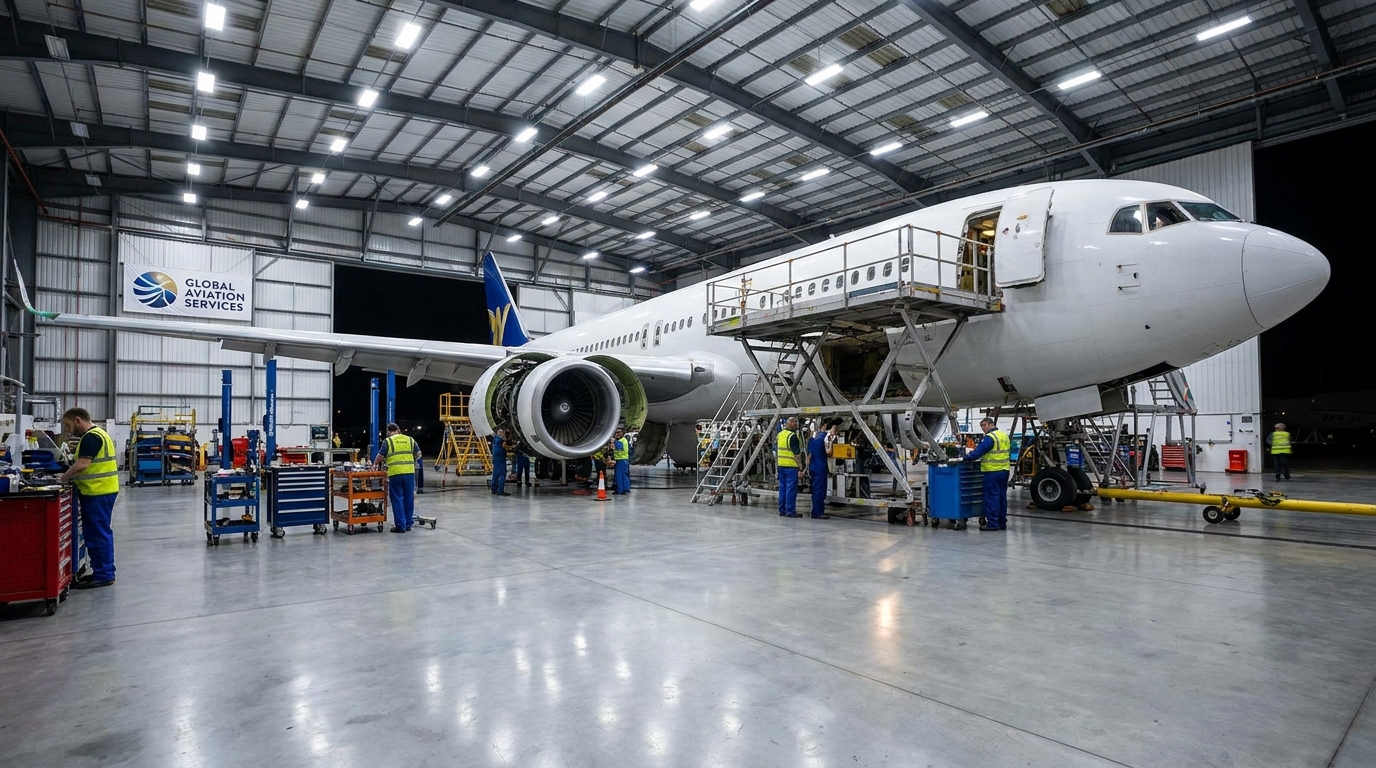

What is an aircraft maintenance hangar?
An aircraft hangar is more than a simple metal shell; it represents an active industrial machine where high-tech aviation maintenance happens daily. Knowing what a maintenance hanggar adalah helps operators design workspaces that optimize safety, streamline maintenance, repair, and overhaul (MRO) tasks, and prevent costly aircraft grounding. Let us look closer at these dynamic spaces.
What distinguishes maintenance from storage?
You must recognize that basic parking structures are only built to shield your aircraft from harsh weather conditions. In stark contrast, a professional maintenance facility functions as a fully active industrial factory floor where heavy-duty workflows are executed. Here is why this matters:
- Active staging docks require massive physical clearances.
- Heavy-duty overhead cranes are suspended directly from the main steel frames.
- High-voltage utility lines must feed constant power to complex MRO equipment.
Think about it: when you transition from simple parking to heavy maintenance, your space needs completely transform. Standard storage shells cannot support these active industrial demands.
How does heavy MRO work impact facilities?
When your team performs heavy MRO tasks such as engine swaps, non-destructive testing (NDT), and structural modifications, the physical stress on your building multiplies. You cannot afford structural deflection or unstable floor plates during these high-risk operations.
- High overhead crane capacities ranging from 5 to over 20 tons are required.
- Spacious side bays are needed to accommodate workshops and parts warehouses.
- Rigid steel framing is necessary to support heavy suspended utilities and safety nets.
Think about it: every structural component must be engineered to withstand severe, dynamic load distributions. Failing to plan for these stresses can compromise both crew safety and aircraft structural integrity.
Key Takeaway: Designing your facility specifically for active maintenance rather than simple storage ensures your building safely supports heavy structural loads and maximizes daily MRO efficiency.
We have compiled a comparative index to help you analyze the primary differences between basic storage and active maintenance layouts:
| Hangar Category | Purpose | Structural Load Needs | Typical Operational Mode | |
|---|---|---|---|---|
| Storage Hangar | Weather protection and parking | Low structural requirements | Low frequency, long-term parking | |
| Maintenance Hangar | Active inspections, repairs, and overhauls | High overhead and point loads | High frequency, round-the-clock MRO |
Which hangar types fit your fleet operations?
Selecting the correct facility design depends entirely on your operational goals, flight frequencies, and overall aircraft dimensions. Understanding how a specialized hanggar adalah configured for specific MRO activities can maximize efficiency is crucial before breaking ground on any new development. Let us explore the primary types used in the aviation industry today.
Is line maintenance built for speed?
When you manage short-term line maintenance, your absolute priority is speed and high aircraft turnaround. You require a layout that supports fast aircraft entry and exit with zero layout obstructions.
- Fast-acting sliding door systems minimize open-air heat loss.
- Mobile tool carts and quick-access utility reels speed up daily checks.
- Smaller physical footprints keep construction costs highly manageable.
Think about it: if your hangar doors take ten minutes to open, you are losing valuable turnaround time and burning operational revenue.
Why does base maintenance require more space?
If your facility is destined for deep, scheduled C and D checks, you need a massive base maintenance setup. You must plan for extended aircraft grounding times where entire assemblies are disassembled.
- Expansive multi-tier scaffolding docks must surround the fuselage.
- Specialized avionics and composite backshops must sit adjacent to the bay.
- High overhead clearances are mandatory to allow safe tail and landing gear inspections.
But that is not all: base maintenance operations require a facility capable of scaling alongside your growing aviation business. This requires long-term planning for structural flexibility.
Key Takeaway: Choosing base maintenance layouts gives you the structural flexibility and workspace depth required to execute heavy overhauls safely and profitably.
This comparative table breaks down how line and base maintenance facilities differ across core structural properties:
| Hangar Type | Primary Use Case | Key Facility Constraint | Advantage | |
|---|---|---|---|---|
| Line Maintenance | Quick checks and minor repairs | Door speed and quick-access utility reels | High turnaround speed | |
| Base Maintenance | Heavy disassemblies and C/D checks | Massive clear-spans and overhead crane support | Complete overhaul capability |
Build Your Custom Steel Aircraft Hangar Today!
Email：sales@showhoo.com.cn
Phone/WhatsApp： + 86 186 7895 5927

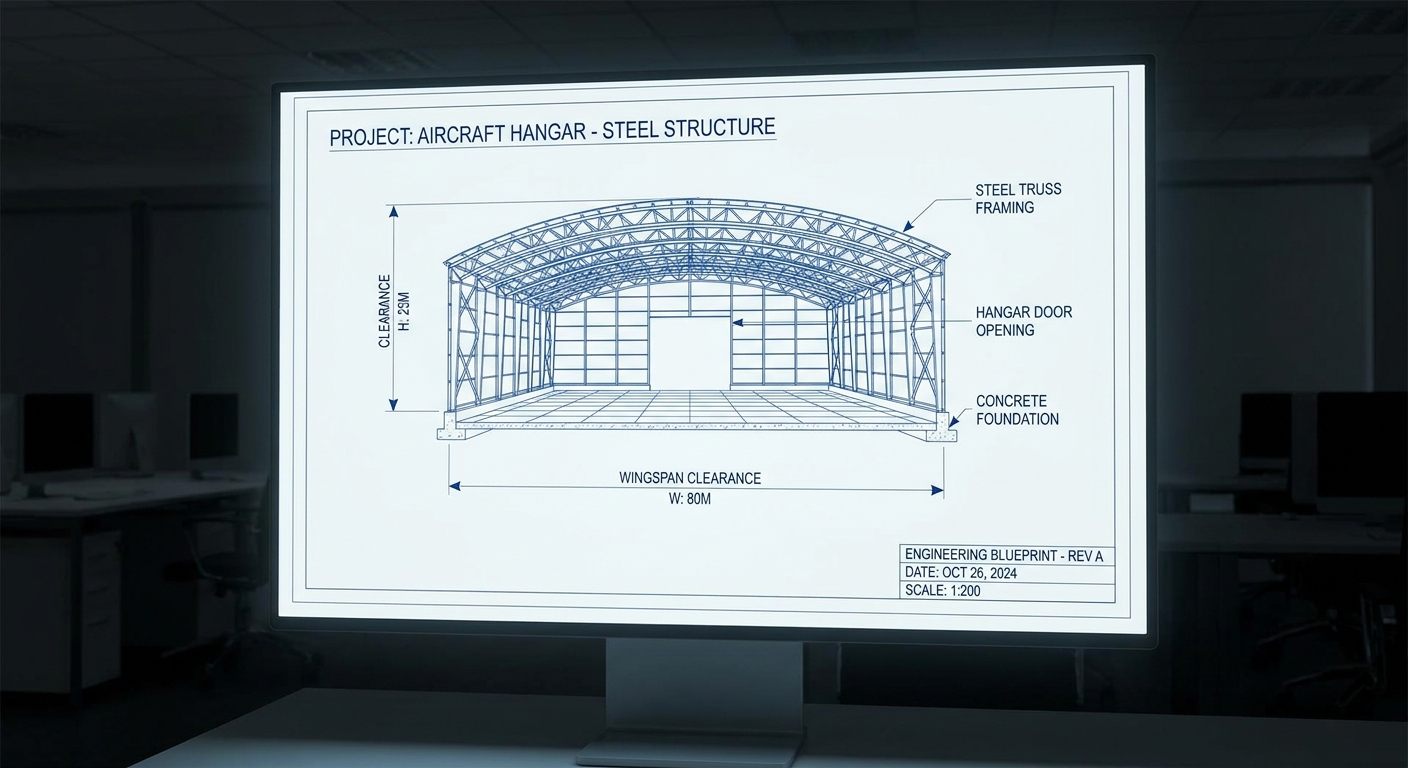

How do you calculate optimal hangar dimensions?
Sizing your facility correctly requires precise geometry to prevent costly aircraft wingtip and tail collisions during daily towing activities. A poorly sized hanggar adalah a liability that limits your fleet flexibility, compromises safety margins, and slows down maintenance work. Let us calculate the key clearances you need to succeed.
How much clearance does your wingspan need?
You must never design your hangar entrance to match your aircraft wingspan exactly. You have to include a wide safety buffer on both sides of the wingtips to prevent towing accidents.
- Add at least 3 to 6 meters of total clearance to your wingspan.
- Verify the turning radius of your ground tow tractors before setting boundaries.
- Ensure door pockets do not block the active entry path when fully opened.
Think about it: providing clear, wide paths drastically reduces the stress on your towing crew and protects multi-million dollar wings.
Why is tail clearance critical for safety?
When you lift an aircraft on jacks, the tail height increases significantly. You must design your roof trusses to accommodate the tallest tail in your fleet plus a safe buffer.
- Add 1 to 2 meters of vertical clearance above the tail tip.
- Prevent expensive tail-strike incidents during lifting procedures.
- Ensure overhead crane systems can pass safely above the aircraft profile.
But that is not all: ignoring these critical vertical buffers can lead to catastrophic collisions with overhead structural framing.
Key Takeaway: Calculating precise dimensional clearances protects your fleet from catastrophic structural strikes and allows safe aircraft jacking operations.
We have detailed the essential geometric buffers you must apply during the architectural sizing phase below:
| Dimension Metric | Minimum Requirement | Purpose | Recommended Safety Buffer | |
|---|---|---|---|---|
| Door Width | Full wingspan + buffer | Prevent wingtip collisions | 3 to 6 meters total | |
| Roof Height | Tallest tail + buffer | Allow safe jacking and crane movement | 1 to 2 meters vertical |

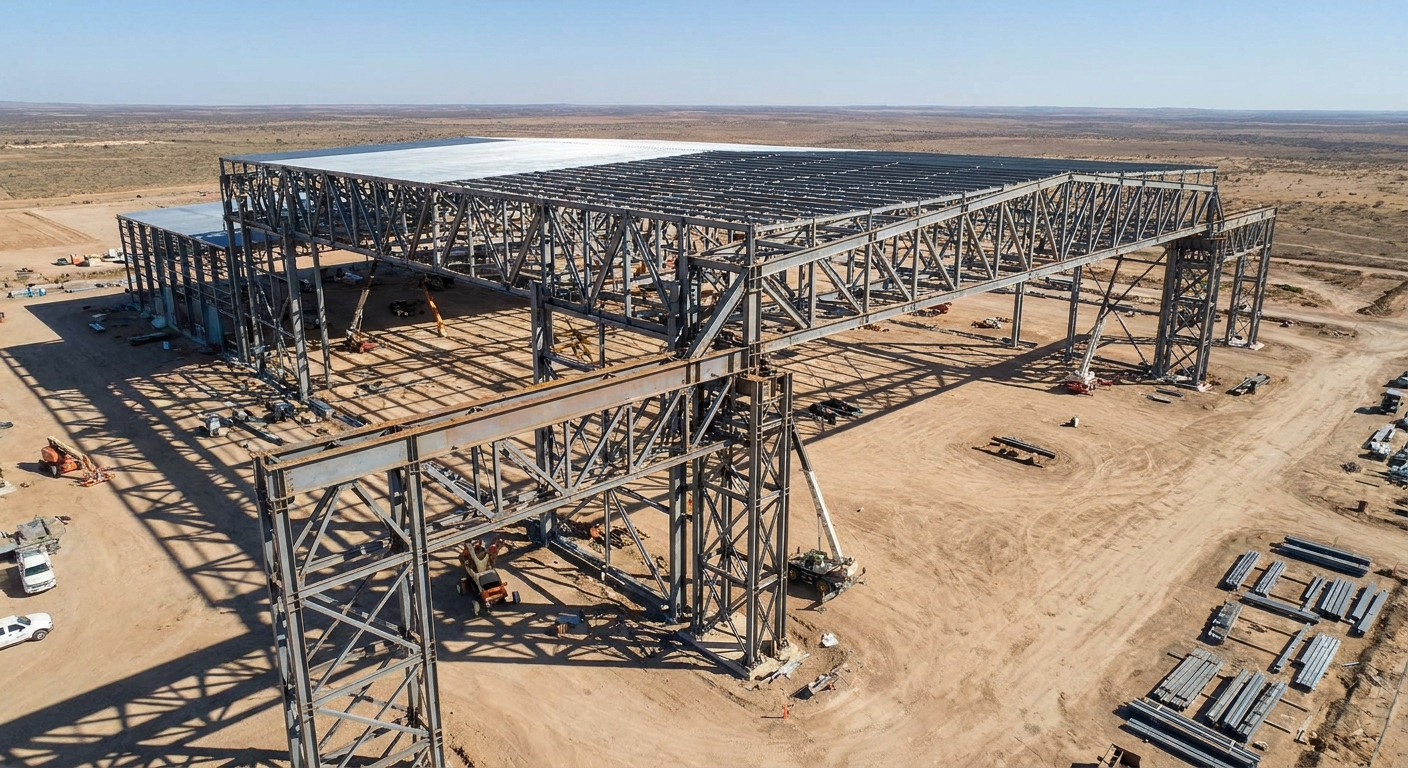

Why is steel structural design superior?
Engineers overwhelmingly select structural steel for wide-body MRO facilities because it provides unparalleled strength-to-weight ratios and design flexibility. A modern steel hanggar adalah highly durable structure capable of supporting massive overhead loads, seismic forces, and extreme weather patterns effortlessly. Let us analyze why steel reigns supreme in aviation engineering.

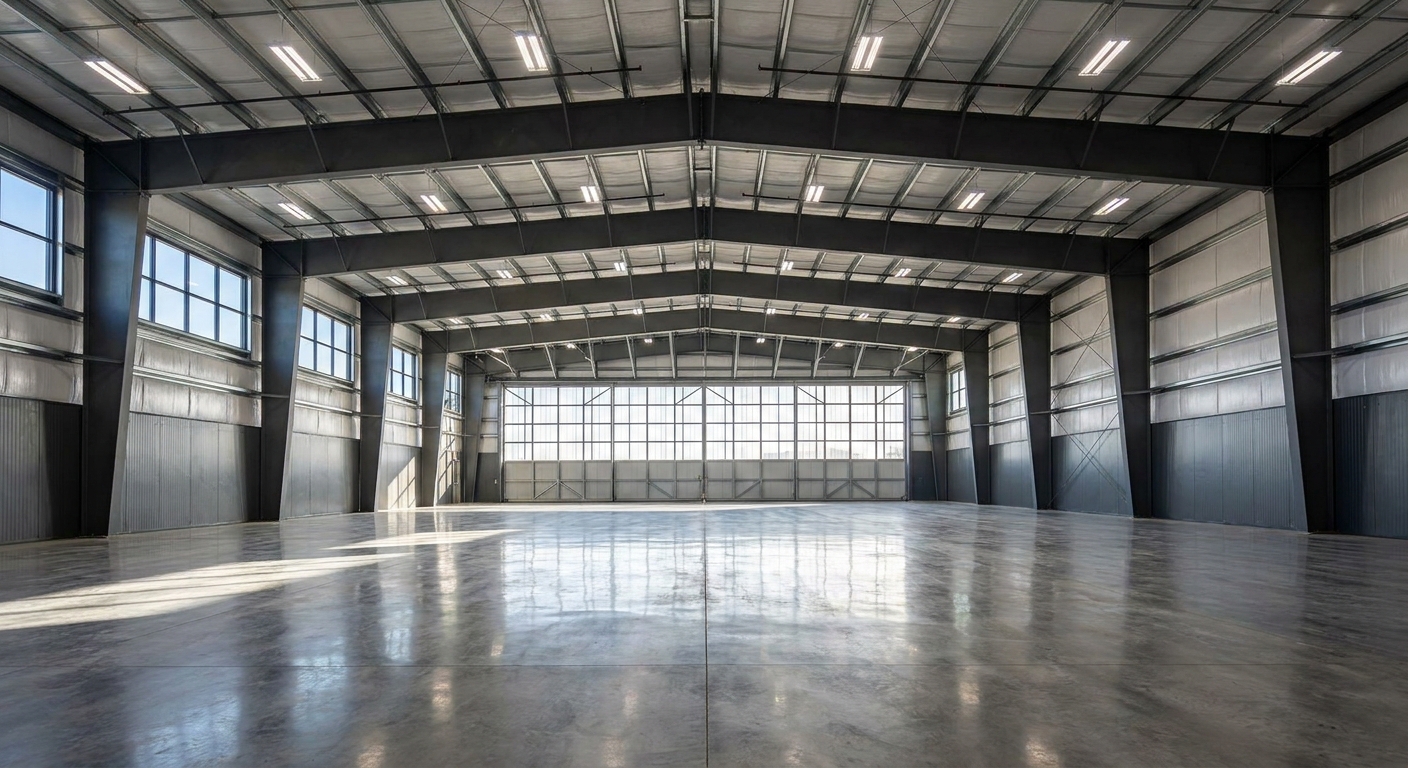

Can steel achieve massive column-free spans?
You cannot afford to have concrete support columns blocking your hangar floor when moving wide-body aircraft. Fortunately, pre-engineered structural steel allows you to achieve clear spans exceeding 100 meters.
- Unobstructed floor space maximizes your aircraft positioning options.
- Large truss depths support massive suspended HVAC ductwork easily.
- Steel frames adapt easily to changes in fleet sizes over time.
Think about it: a column-free space is the ultimate asset for terminal and MRO operations, enabling total flexibility.

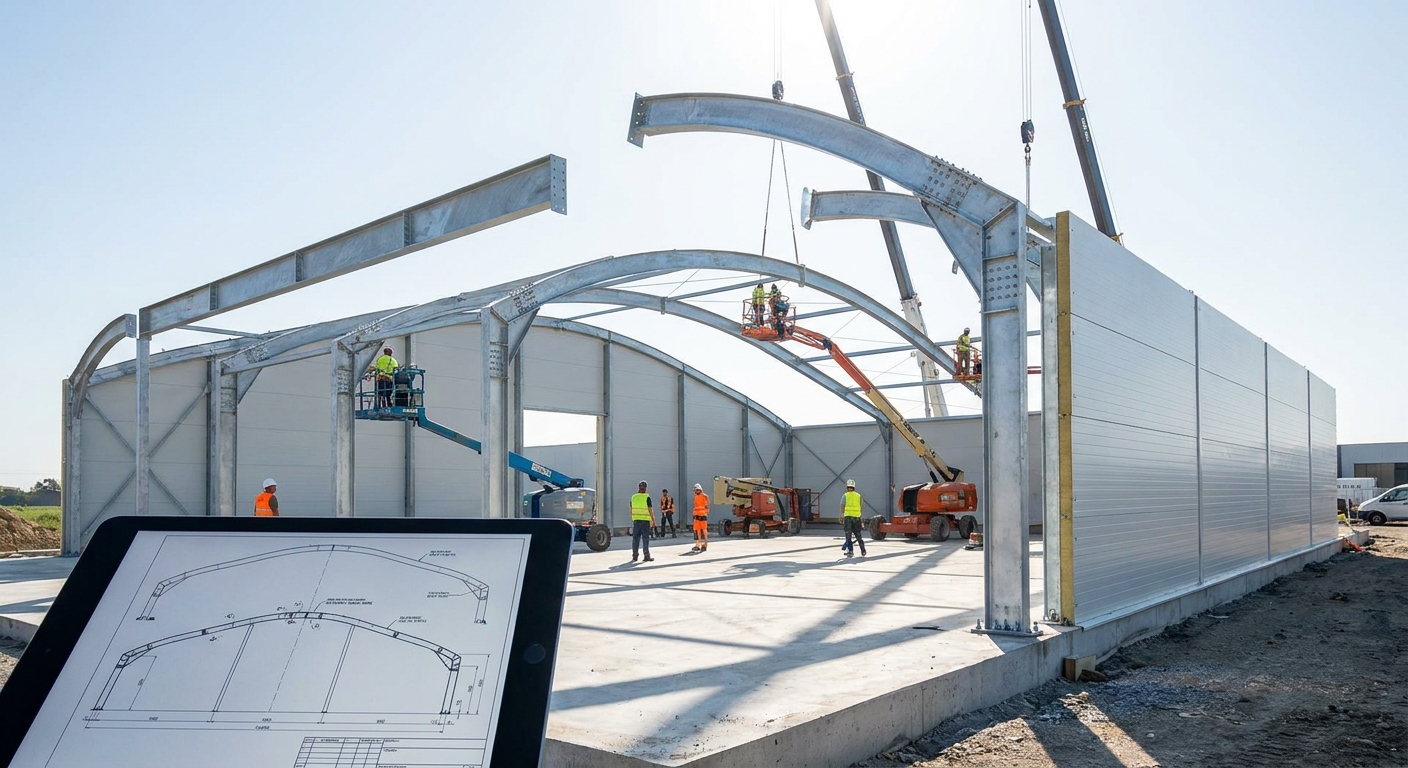

How does pre-engineered steel speed up erection?
If you want to minimize your time-to-market, prefab steel is your best solution. Your building components are manufactured with millimeter precision in a factory before shipping to your site.
- Bolted connections eliminate slow and expensive on-site welding.
- Prefabricated parts arrive clearly labeled for immediate assembly.
- Reduced construction waste lowers your overall project footprint.
But that is not all: rapid assembly translates directly into reduced labor costs and a faster path to operational profitability.
Key Takeaway: Investing in a prefabricated steel structure drastically cuts your construction schedule while delivering a rigid, column-free workspace.
Compare the core material advantages of prefabricated structural steel over traditional building options:
| Material Option | Clear Span Potential | Construction Speed | Long-Term Durability | |
|---|---|---|---|---|
| Prefab Steel | Outstanding (100m+) | Fast, modular erection | Extremely high, corrosion resistant | |
| Traditional Concrete | Poor (limited spans) | Slow, cast-in-place | High, but prone to cracking |
What are the engineering rules for concrete floors?
The concrete floor slab of an aviation facility represents one of its most critical structural components, bearing the extreme point loads of heavy aircraft. Designing this floor correctly means understanding that a professional hanggar adalah a high-precision testing ground where even minor slab slope deviations can lead to equipment tipping. Let us look at the details.

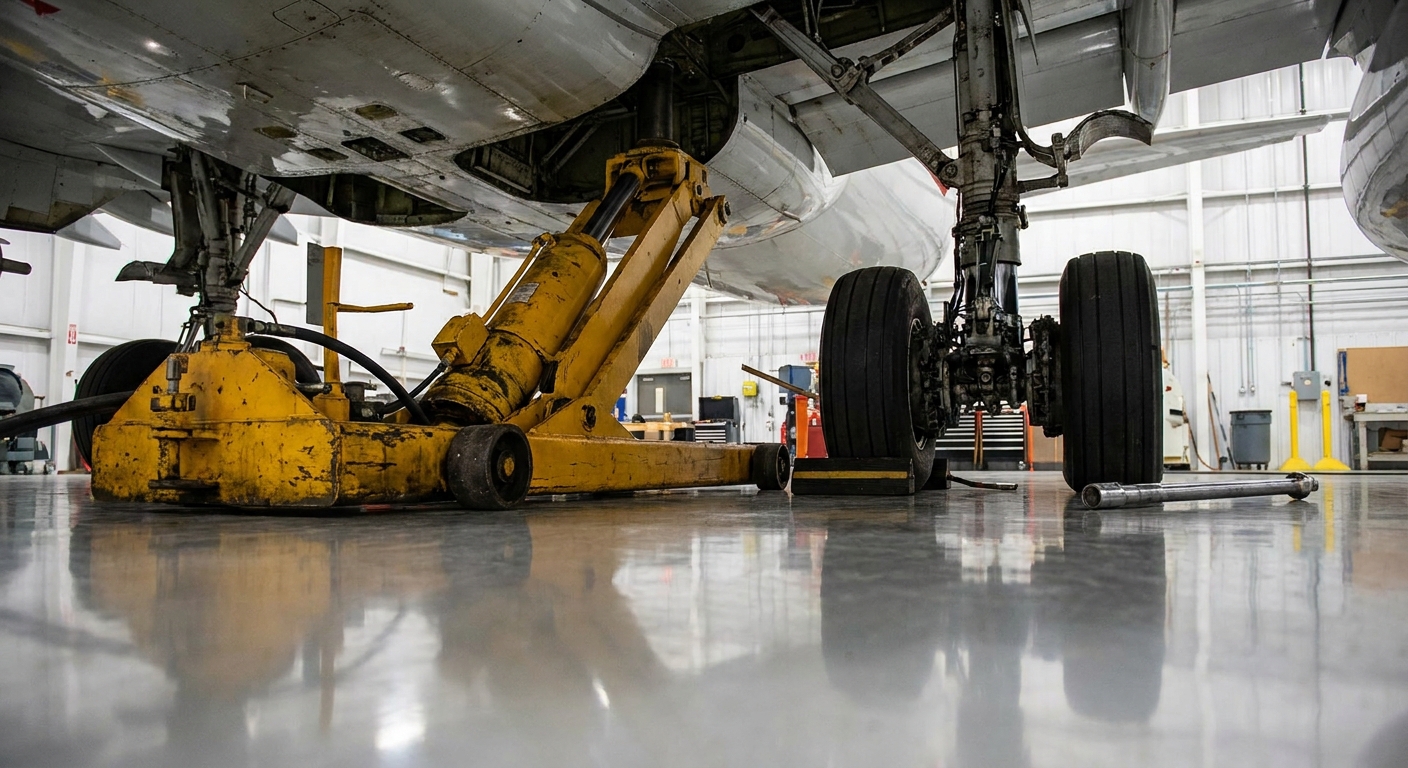

Why is flat floor crucial for lifting jacks?
You must maintain extreme floor flatness when utilizing hydraulic jacks to lift heavy aircraft. A sloped or uneven floor compromises the stability of your jack setups, posing extreme safety hazards to your crew.
- Limit your floor slope to ≤6 mm deviation within 3 meters.
- Prevent dangerous sliding or tilting of heavy hydraulic cylinders.
- Ensure high-strength epoxy coatings protect against corrosive chemical spills.
Think about it: a perfectly level floor is your primary line of defense against devastating jacking and tipping accidents.
How do you design for extreme point loads?
When you lift a commercial airliner, its massive weight translates into concentrated point loads of 10 to over 30 tons. You must ensure your concrete slab is engineered to absorb these forces without structural failure.
- Thick, reinforced concrete slabs are cast with heavy rebar grids.
- Localized structural grade beams are added underneath high-stress zones.
- Control joints are designed to transfer loads smoothly without cracking.
But that is not all: advanced subgrade compaction is necessary to prevent localized soil shifting beneath the heavy concrete slab.
Key Takeaway: Designing a highly level, reinforced concrete floor slab with durable epoxy coatings guarantees maximum safety during heavy aircraft jacking procedures.
This table lists the strict specifications required to ensure your hangar floor stands up to heavy active maintenance workflows:
| Floor Specification | Metric Standard | Primary Engineering Purpose | |
|---|---|---|---|
| Slab Flatness | ≤6 mm over 3 meters | Ensures absolute hydraulic jack stability | |
| Load Capacity | 10 to 30+ tons (point load) | Absorbs massive landing gear and jack forces | |
| Surface Finish | High-gloss chemical epoxy | Protects concrete from fuel and hydraulic fluids |

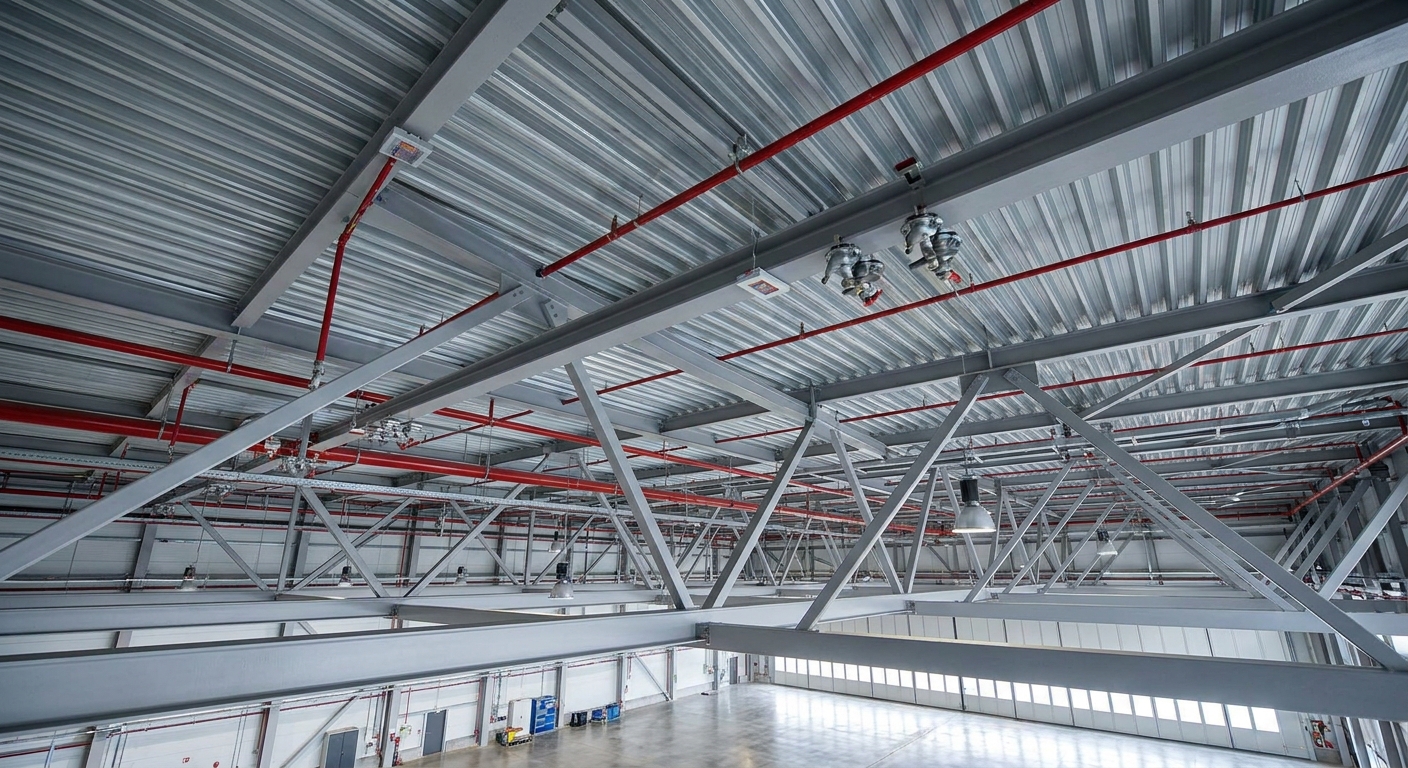

What fire protection standards must you meet?
Aviation facilities hold high fuel and chemical volumes, making comprehensive fire safety and suppression systems absolutely mandatory for standard compliance. A compliant fire safety hanggar adalah specialized asset equipped with foam deluge heads, rapid optical flame detectors, and chemical-safe drainage trenches. Let us examine these critical safety requirements.
Is NFPA 409 compliance mandatory for your shop?
You must adhere strictly to international codes like NFPA 409 to legally operate a commercial MRO business. These guidelines regulate everything from fuel storage separation to automatic foam activation.
- Deluge foam systems are designed to smother fuel fires in seconds.
- Optical flame sensors detect ignition faster than standard heat detectors.
- Dedicated water reservoirs must supply fire pumps for prolonged durations.
Think about it: non-compliance can shut down your terminal instantly and result in massive financial or legal liabilities.
How do foam systems integrate with drainage?
When your deluge system activates, you must contain the hazardous chemical runoff to prevent environmental damage. Your floor layout must feature specialized grated drainage trenches to capture excess foam and wastewater.
- Heavy-duty grated trenches must support active aircraft wheel loads.
- Spill containment tanks are required to isolate toxic fire suppression chemicals.
- Sloped floor profiles must guide runoff safely away from primary aircraft bays.
But that is not all: failing to integrate drainage with foam containment leads to environmental non-compliance and structural water damage.
Key Takeaway: Integrating a robust NFPA 409 fire suppression system with chemical-safe floor drainage secures your operational license and protects your multi-million dollar assets.
Ensure your facility adheres to the critical fire safety elements compared in the matrix below:
| System Component | Minimum Compliance Standard | Primary Operational Safety Role | |
|---|---|---|---|
| Deluge System | NFPA 409 Foam Suppression | Rapidly smothers fuel fires with chemical foam | |
| Flame Detectors | Triple-IR Optical Sensors | Detects ignition sources instantly, ignoring sunlight | |
| Drainage Grates | Chemical-resistant containment | Safely routes toxic water away from public systems |
Build Your Custom Steel Aircraft Hangar Today!
Email：sales@showhoo.com.cn
Phone/WhatsApp： + 86 186 7895 5927

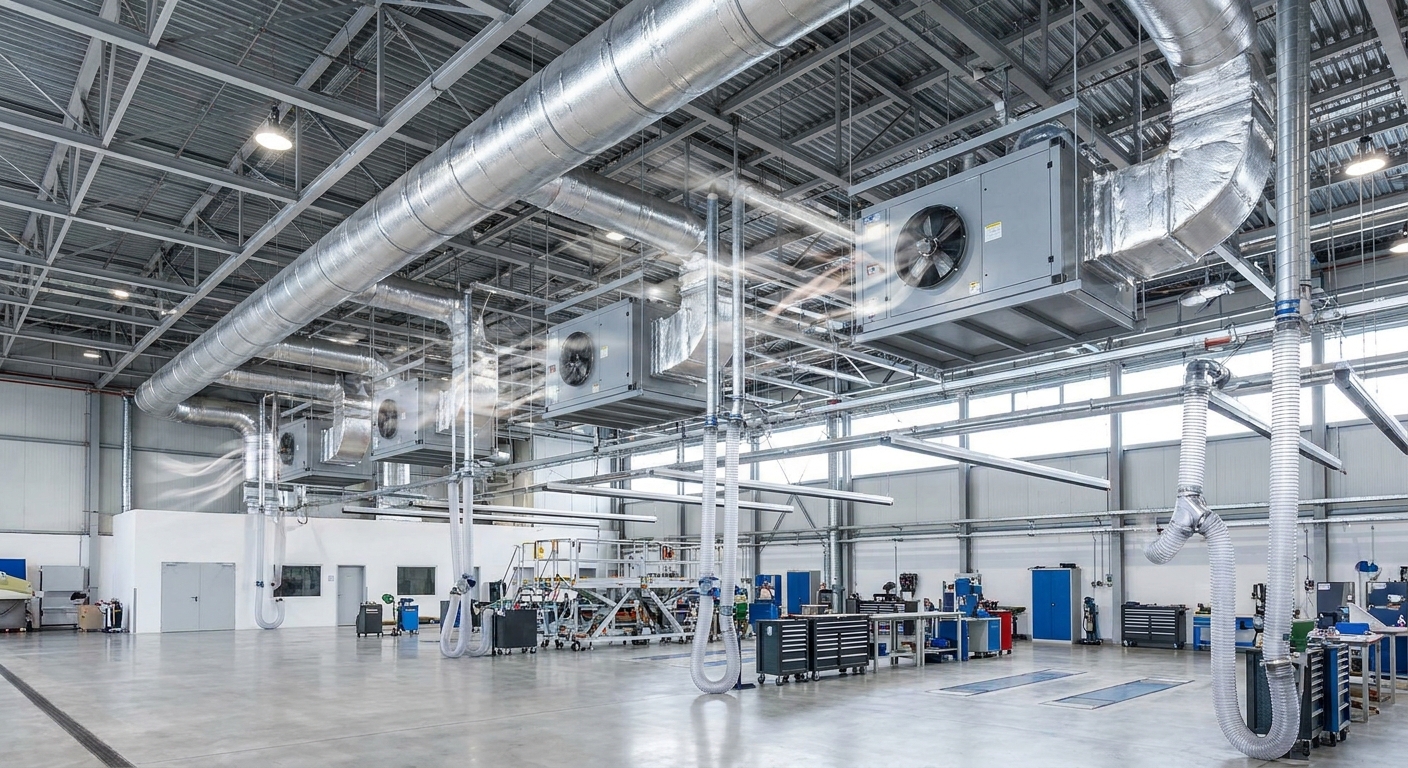

Why is ventilation and HVAC system size critical?
Maintaining clean air and controlling relative humidity inside a massive industrial structure is essential to protect technicians and sensitive aircraft components. An unventilated industrial hanggar adalah a hazard zone where chemical fumes settle and condensation corrodes expensive avionics. Let us explore how ventilation solves this.
Do you need ten air changes per hour?
You must maintain high airflow rates when your crew uses paints, sealants, and volatile cleaning solvents. A high air-exchange system is vital to keep dangerous chemical vapors from accumulating in low-lying areas.
- Design your mechanical system for 6 to 10 Air Changes per Hour (ACH).
- Install localized explosion-proof exhaust fans near chemical-intensive paint zones.
- Ensure clean supply air routes directly to active technician work areas.
Think about it: adequate ventilation keeps your crew energized, healthy, and safe from chemical exposure risks.
Can humidity control prevent aircraft corrosion?
If you operate in coastal or humid regions, you must control your indoor relative humidity. Uncontrolled moisture leads to heavy condensation on polished aircraft aluminum and sensitive radar systems.
- Keep relative humidity (RH) strictly between 40% and 60% at all times.
- Install industrial-scale dehumidifiers within your central HVAC loops.
- Seal all door joints tightly with weather seals to prevent outdoor air infiltration.
But that is not all: unchecked ambient humidity will trigger oxidation in wire contacts, causing devastating avionics failures.
Key Takeaway: Designing your HVAC systems to maintain optimal ventilation rates and stable humidity levels prevents corrosion and ensures clean, safe breathing conditions for your team.
Use this atmospheric engineering table to establish correct HVAC metrics for your maintenance facility:
| Air Property | Target Standard | Primary Operational Benefit | |
|---|---|---|---|
| Air Exchange Rate | 6 to 10 ACH | Eliminates toxic chemical vapors and paint fumes | |
| Relative Humidity | 40% to 60% RH | Prevents electrical shorts and aluminum corrosion | |
| System Component | Dehumidifiers & extraction fans | Secures micro-climate stability across large bays |
How do you plan the MRO facility layout?
Maximizing your MRO workflow efficiency depends on how well you organize backshops, parts warehouses, and aircraft bays. A masterfully planned hanggar adalah workspace where tools, technicians, and parts move with zero wasted time and minimal transit distance. Let us examine the design workflows that make this possible.
What is the ideal backshop distance?
You must position your specialized backshops, such as avionics, hydraulics, and tire repair, immediately adjacent to the main hangar bay. If your crew has to walk long distances to retrieve parts, your labor costs will skyrocket.
- Aim for a maximum parts transit distance of under 60 meters.
- Incorporate mezzanine levels to double your usable workshop floor space.
- Create clean, direct corridors connecting backshops to the nose dock.
Think about it: every single minute spent walking is a minute of active aircraft maintenance lost.

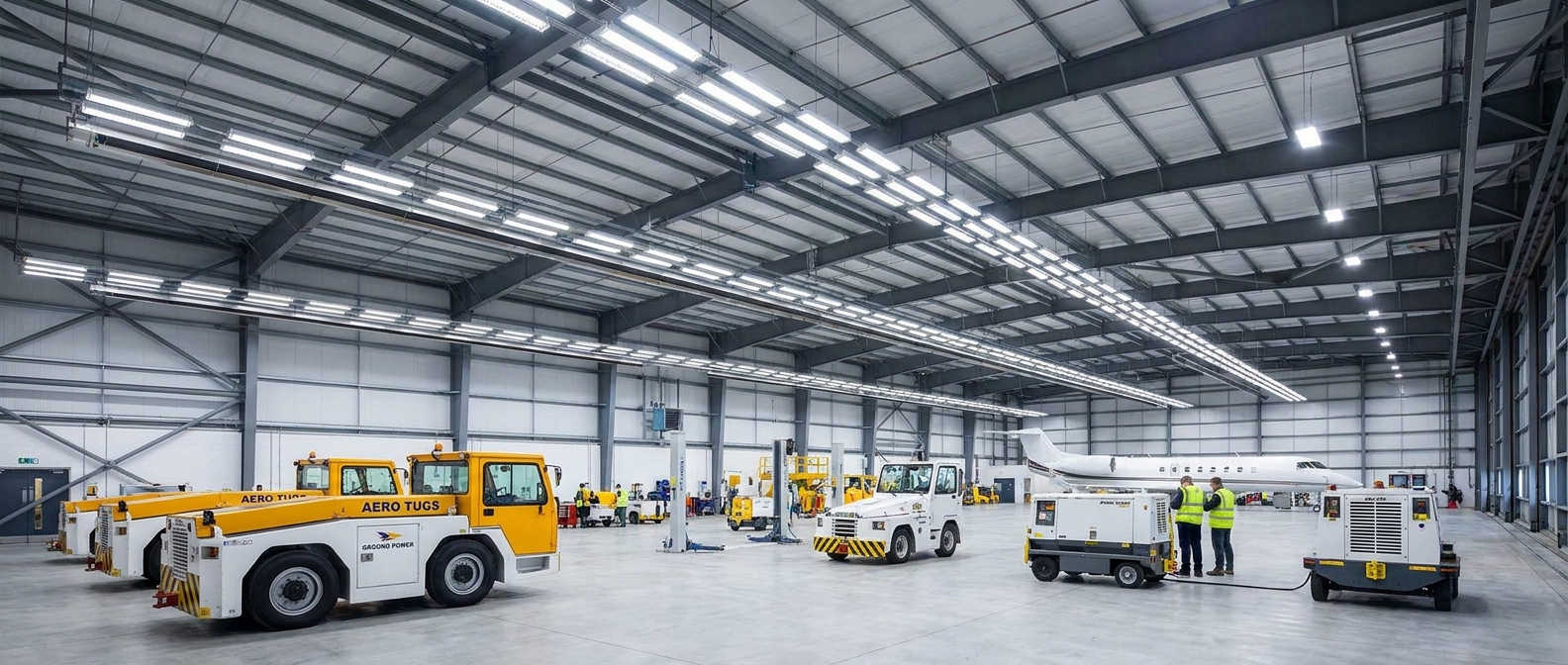

How do you design efficient GSE traffic lanes?
Your ground support equipment (GSE), such as tugs, jacks, and mobile generators, needs designated parking and movement lanes. Without organized traffic management, your shop floor will quickly devolve into a congested safety hazard.
- Paint high-visibility yellow lane boundaries on your epoxy floors.
- Design dedicated GSE charging and storage zones outside central bays.
- Maintain completely open, unobstructed fire and emergency egress routes.
But that is not all: specialized parking bays prevent ground equipment from colliding with aircraft wings and fuselages.
Key Takeaway: Optimizing your layout to shorten parts transit times and organize machine traffic lanes boosts your daily B2B productivity by up to thirty percent.
Plan your spatial zones according to this architectural efficiency matrix to eliminate wasted transit time:
| Spatial Area | Target Location | Primary Design Objective | |
|---|---|---|---|
| Backshops | Directly adjacent to main bay | Minimizes technician travel and downtime | |
| GSE Parking | Perimeter of main bay | Keeps center floor clear for safe aircraft towing | |
| Mezzanines | Above workshops | Utilizes vertical space for administration and storage |
How do you fix common hangar bottlenecks?
Identifying and resolving structural and layout bottlenecks in your existing facility is the fastest way to boost daily MRO throughput. Knowing how a poorly configured hanggar adalah bottleneck helps you make targeted retrofits to your doors, floors, lighting, and ventilation systems. Let us address the most common issues.
What makes aircraft towing slow and risky?
If your entrance has a restricted turning radius, your towing operations become slow, nerve-wracking, and highly prone to wingtip collisions. You must retrofit your entryway to facilitate smooth, straight-line approaches.
- Wider concrete apron areas allow easy tow tractor maneuvering.
- High-speed sliding doors reduce thermal exchange and vehicle waiting times.
- Clear painted floor guides help tug drivers align aircraft quickly.
Think about it: a structural bottleneck at the door halts operations across your entire aircraft maintenance facility.
How do you eliminate lingering chemical vapors?
If your technicians complain about strong chemical smells, your exhaust systems are failing to capture fumes at the source. You must install localized extraction arms and upgrade your primary ventilation units.
- Install flexible, overhead source-capture extraction hoses.
- Replace worn ventilation filters with active carbon variants.
- Upgrade old, dim lighting fixtures to high-lux LED systems.
But that is not all: localized source capture improves localized air quality and prevents cross-contamination across different workbays.
Key Takeaway: Implementing targeted retrofits to your entryways, ventilation systems, and floor markings quickly eliminates expensive operational bottlenecks.
Troubleshoot and resolve persistent bottlenecks in your operational workflows with the following concrete remedies:
| Operational Bottleneck | Root Structural Cause | Direct Retrofit Solution | |
|---|---|---|---|
| Slow Aircraft Towing | Narrow doors & tight aprons | Install wide-sliding doors; expand concrete apron | |
| Lingering Paint Vapors | Poor air-exchange and low ACH | Install source-capture extraction hoses; raise ACH | |
| Technician Eyestrain | Low lux level from old lights | Upgrade entire overhead system to high-lux LEDs |
How do safety standards protect your crew?
A safe maintenance environment directly translates into higher productivity, fewer accidents, and improved overall operational quality. A world-class pre-engineered hanggar adalah secure fortress where technicians operate with full confidence because the spatial layout separates human workers from heavy machinery hazards. Let us review the best safety practices.
Why must fire lanes remain clear?
You must ensure emergency response crews can access any area of your facility in seconds. Keeping your painted fire lanes completely free of toolboxes, parts, and ground equipment is a legal safety mandate.
- Unobstructed pathways allow rapid fire truck or rescue team access.
- Technicians can evacuate instantly and safely during sudden emergencies.
- Local fire code compliance protects your business from expensive fines.
Think about it: a single blocked exit lane is a major disaster waiting to happen during an incident.
How do you separate humans from heavy machinery?
When heavy tugs and scissor lifts are constantly moving, you must establish clear, protected walking paths for your ground crew. This simple step dramatically lowers the risk of workplace collisions.
- Mark high-visibility pedestrian walkways directly on the epoxy floors.
- Install physical steel guardrails around high-voltage utility junctions.
- Provide ample, well-lit storage spaces for suspended maintenance docks.
But that is not all: active separation is the single most effective way to eliminate workplace injuries.
Key Takeaway: Establishing strict safety lane segregation and keeping emergency pathways clear protects your technicians and ensures high-quality MRO output.
Review how these foundational safety boundaries protect your bottom line and ensure compliance:
| Safety Measure | Structural Implementation | Core B2B Business Benefit | |
|---|---|---|---|
| Clear Fire Lanes | Painted floor markings | Rapid emergency egress and zero regulatory fines | |
| Pedestrian Walkways | Color-coded designated lanes | Drastically reduces workplace machinery collisions | |
| Guardrails | Anchored steel physical barriers | Protects valuable equipment from forklift damage |
B2B Strategic Conclusion
Constructing a state-of-the-art aircraft maintenance facility requires an uncompromising focus on structural integrity, clear spatial planning, and robust environmental controls. Pre-engineered steel structures offer the ultimate B2B solution, delivering the column-free spans, massive point load capacities, and fire-safe materials required to execute successful, high-efficiency MRO operations. By carefully integrating optimal dimensions, concrete floor flatness, proper air exchange rates, and strict safety lane layout controls, you eliminate costly aircraft downtime, protect your technicians, and maximize your fleet profitability. If you are ready to construct a world-class, factory-direct steel facility optimized for your unique aviation operations, contact us today to receive a customized 3D engineering layout and complete project cost estimate from our team of structural experts.
Build Your Custom Steel Aircraft Hangar Today!
Email：sales@showhoo.com.cn
Phone/WhatsApp： + 86 186 7895 5927
Frequently Asked Questions
- Can I use a basic storage building for aircraft maintenance?
No, because standard storage structures lack the floor load capacity to support heavy aircraft jack loads, do not possess the structural integrity to suspend overhead cranes, and lack the specialized ventilation and fire safety systems required for hazardous MRO operations.
- What’s the best way to estimate door dimensions for a hangar?
Always add a safety buffer of three to six meters to your largest wingspan. This prevents wingtip collisions during towing and gives your ground support equipment adequate clearance.
- How do I know if my concrete floor is flat enough for aircraft jacking?
Verify that deviation does not exceed 6 mm within a 3-meter radius. Any slope greater than this standard increases the risk of hydraulic jacks tilting or slipping during heavy lifting.
- How do I know if my facility needs a high-expansion foam deluge system?
Yes, if your operations fall under NFPA 409 Group I or II categories. Under international safety standards, these classifications require automatic foam systems to smother fuel fires rapidly and prevent total facility loss.
- Can I house both maintenance workshops and administrative offices in one steel building?
Yes, because pre-engineered steel frames can support load-bearing mezzanine layouts and fire-rated partition walls. This allows you to place offices, parts warehouses, and workshops adjacent to the main aircraft bay safely.
